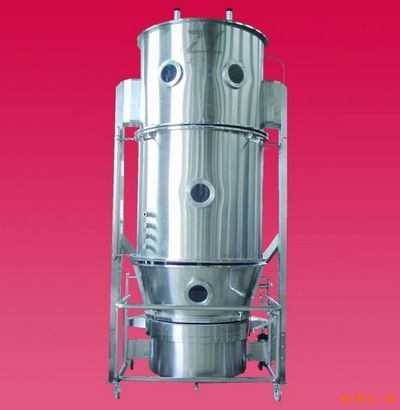

FL-B型騰制粒機（一步制粒機） |
|
FLUID-BED GRANULATOR(ONE-STEP GRANULATOR |
|
★設備特點：Features of equipment |
|
※混合 - 制粒 - 干燥一步法制粒。
※雙捕集濾袋系統，清灰徹底。 ·多流體霧化器，確保成粒均勻。
※可選配兩巴的防爆設計
※GMP 規范設計、制造及工程配置布局。
※Mixing-granulating-drying in one-step.
※Adopting double chamber filtering bags system, remove dust completely.
※Adopting multi-fluid nozzle, it guarantees that the formed granule is uniform and the
※content of powder is very low.
※Can choose 2 bar explosive-proof design
※Designed, manufactured and laid out by GMP |
|
★應用概述 :General of applications |
|
※本機主要用于：醫藥、食品、化工等行業的粉末物料混合、制粒、干燥、顆粒 “ 頂噴 ” 包衣等作業。如片劑顆粒、速溶飲料、調味品用顆粒。
※本機按 JB20014-2004 《藥用沸騰制粒器》標準。
※The machine is mainly used for the operations of mixing, granulating, drying and coating of granule "Top Spraying", etc of powder material in pharmaceutical industry, foodstuff industry, chemical industry, etc. Such as granule of tablet, granule for quick resolving drinking, condiment.
※The machine is manufactured in accordance with JB20014-2004 《 Fluid-bed Granulator In Medicine 》 |
|
★技術參數:Technical Data |
|
規格Specification
項目Item |
3 |
5 |
15 |
30 |
45 |
60 |
90 |
120 |
150 |
200 |
300 |
500 |
800-
1000 |
|
投料量Capacity |
Kg/批kg/batch |
3 |
5 |
15 |
30 |
45 |
60 |
90 |
120 |
150 |
200 |
300 |
500 |
按用戶要求設計
By
client |
|
原料容器容量Container voiume |
L |
12 |
22 |
45 |
100 |
155 |
220 |
300 |
420 |
550 |
670 |
1000 |
1500 |
|
風機功率Power of fan |
Kw |
4 |
4 |
5.5 |
7.5 |
11 |
15 |
15 |
18.5 |
22 |
22 |
30 |
45 |
|
噪音Noise |
db |
風機隔離處理噪音小于75分貝No more than 75db Separated of fan |
|
壓縮空氣
Compressed air |
壓強 Pressure |
Mpa |
0.6 |
|
耗量Consumption |
M3/min |
0.4 |
0.4 |
0.6 |
0.9 |
0.9 |
0.9 |
1.1 |
1.1 |
1.1 |
1.3 |
1.6 |
1.8 |
|
蒸汽
Steam |
壓強Pressure |
Mpa |
0.4-0.6 |
|
耗量Consumption |
Kg/h |
|
|
35 |
60 |
99 |
120 |
130 |
140 |
161 |
180 |
310 |
450 |
|
電加熱功率Power of electrical heater |
Kw |
6kw |
9kw |
|
|
|
|
|
|
|
|
|
|
|
主機尺寸
Size of installation for reference |
H1(mm) |
|
|
2670 |
2760 |
2940 |
3190 |
3200 |
3430 |
3520 |
3690 |
3770 |
4240 |
|
H2(mm) |
2600 |
2600 |
3030 |
3120 |
3430 |
3680 |
3690 |
3920 |
4010 |
4160 |
4240 |
4760 |
|
H3(mm) |
2410 |
2410 |
2480 |
2570 |
2715 |
2950 |
2960 |
3190 |
3280 |
3450 |
3510 |
3960 |
|
B1(mm) |
760 |
860 |
1010 |
1160 |
1320 |
1460 |
1560 |
1660 |
1760 |
1860 |
2060 |
2260 |
|
B2(mm) |
1060 |
1660 |
1560 |
1860 |
2180 |
2460 |
2660 |
2860 |
3060 |
3260 |
3660 |
4060 |
|
L(mm) |
850 |
1000 |
1100 |
1250 |
1530 |
1530 |
1530 |
1650 |
1650 |
1650 |
1750 |
1850 |
|
￠1 |
300 |
400 |
550 |
700 |
860 |
1000 |
1100 |
1200 |
1300 |
1400 |
1600 |
1800 |
|
￠2 |
150 |
180 |
180 |
180 |
250 |
280 |
280 |
280 |
280 |
280 |
315 |
355 |
|
|
所有尺寸僅作參考 , 視物料情況 , 本公司擁有變更權利 , 并不另行通知 .
*All sizes are used for reference only. According to the condition of material, our factory has the right change but not notice, pardon! | |
